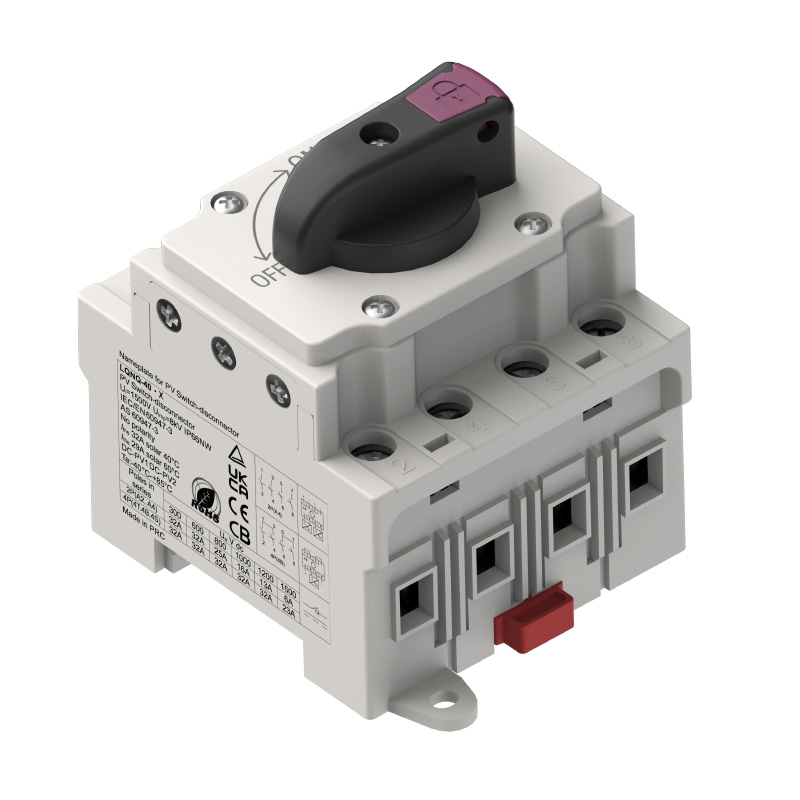

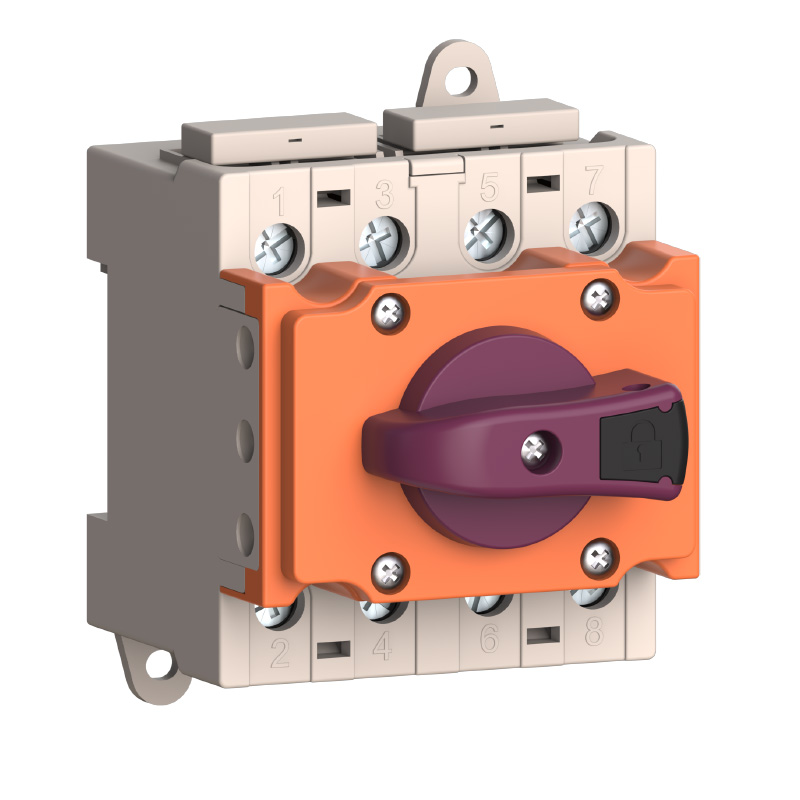

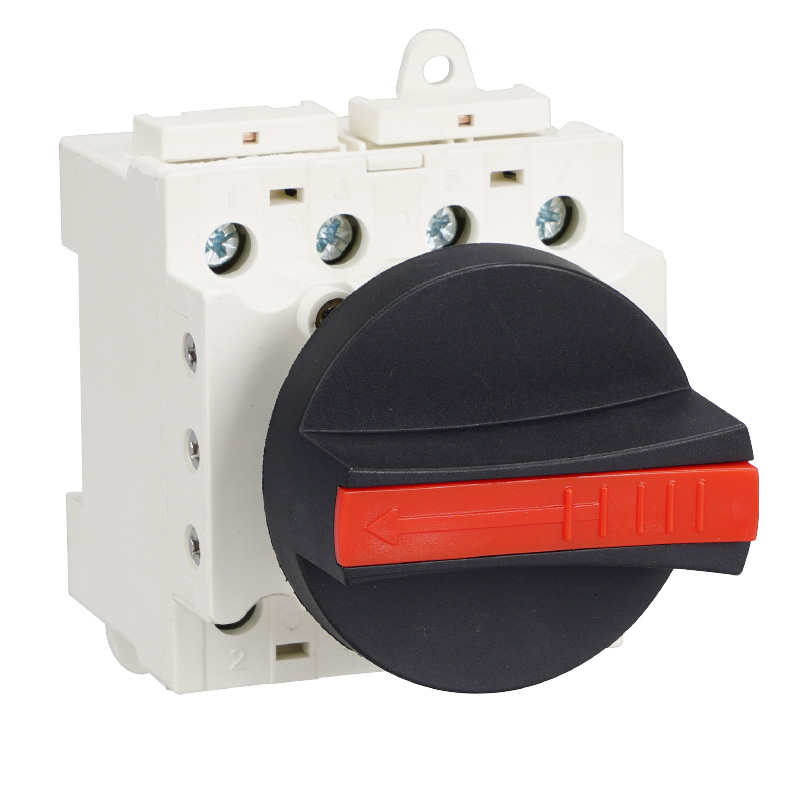

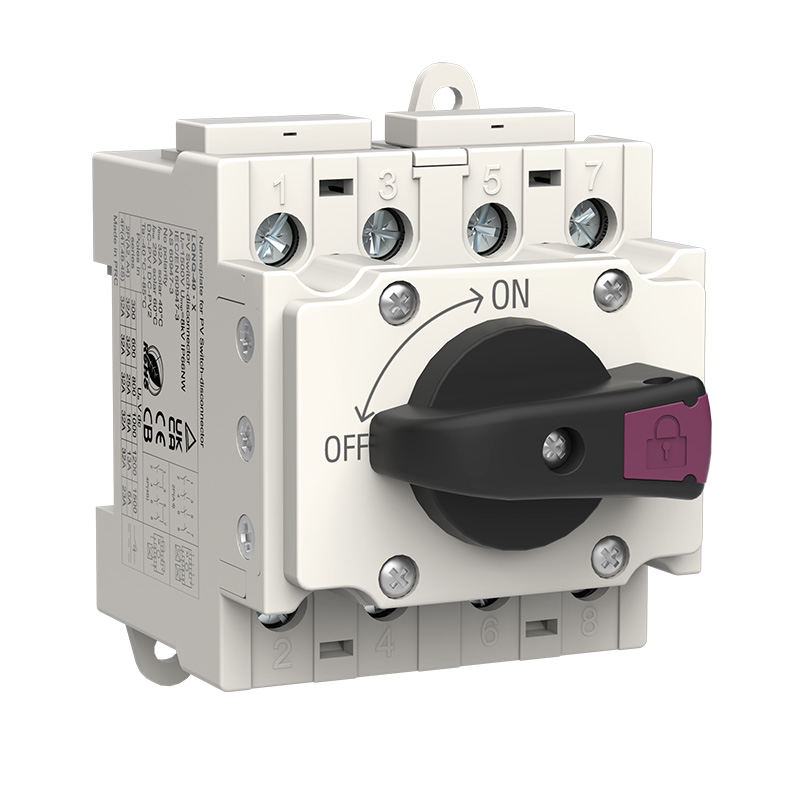

Módulo de distribuição de energia do interruptor de desconexão 2P/4P

CNLonQcom Chave seccionadora Módulo de distribuição de energia 2P/4P Módulo integrado DC1500V 40A 2P/4P, proteção contra sobrecarga CC e proteção contra curto-circuito
Tensão nominal: DC1500V
Corrente nominal: 40A
Nível de proteção: IP20
Material da carcaça: PA
Material condutor: cobre
Pólos: 4 pólos
Certificado: CE, TUV, CB, AZ, UKCA, ROHS, ISO9001

Modelo:LONQ-40.X

Enviar consulta Baixar PDF

Descrição do produto

Technical Data
Model	LONQ-40.X LONQ-40.I LONQ-40.F
Type	PV DC Disconnect Isolator Switch
String	2 in 2 out or 2 in 1 out or 1 in 1 out or 1 in 2 out
Rated Current In(A)	32	32	32	32	32	23
Rated Working Voltage Ue (V)	300	600	800	1000	1200	1500
Rated Insulation Voltage Ui (V)	1500V
Pole	4P
Rated Impulse Withstand Voltage Uimp (kV)	8
Short-Time Withstand Current Icw (kA)	1
Wiring Method	Non-polarized
Standard	IEC/EN60947-3 GB/T 14048.3
Insolation Feature	Yes
Flame Retardant Grade	UL94V-0
Housing Material	PA
Conductor Material	Silver Plated Copper
Quality Certificate	TUV、CE、CB、UKCA、AZ、CCC、ISO9001、ROHS
Mechanical Life (times)	20000
Electrical Life (times)	6000
Knob Positions	OFF at 9 hr ，ON at 12 hr
Operating Temperature	-40℃ to +85℃
Humidity	≤95%
Altitude	2000m
Installation	35mm DIN Rail
Packaging Details	1Pcs per inner box, 50Pcs per carton
Contact Wiring Diagram
Connect Method Code	Circuit Type		Wining Diagram		Load Diagarm
2P(A2)	2 poles in series for one string, 1 load
2P(A4)	2 poles in series for one string, total 2 loads
4P(4T)	4 poles in series, for one string
4P(4B)	4 poles in series, for one string
4P(4S)	4 poles in series, for one string

PV Disconnect
Built-in Switch

DC1200V 32A 2in 2out

lsolation Circuit

Over-voltage Protection

Short circuit protection

Material:PA

IP66

Durable

UV resistance

Flame retardant

Non-polarized

-40℃ ~ +85℃

SIZE

LWH:71.565.7105(mm)

LONQ-40.X

LONQ-40.I

LONQ-40.F

FIRM PACKAGING

guarantee replacement of damaged goods

1Product in Inner Box

3 layers of thickened kraft paper

2Outter Box

5-ply corrugated extra hard

3Delivery

Quick Shipment

Model	Poles	Inner Box (PCS/cm)	Outter Box (cm)	QTY (PCS)	G.W. (kgs)
LONQ-40.2-2	4P	1/2610.812	57.527.549.5	20	21

FULLY CERTIFIED

Branded source manufacturers with high quality and low price

Note: Contact us for more certificates

INSTALLATION AND WIRING

Installation and Disassembly

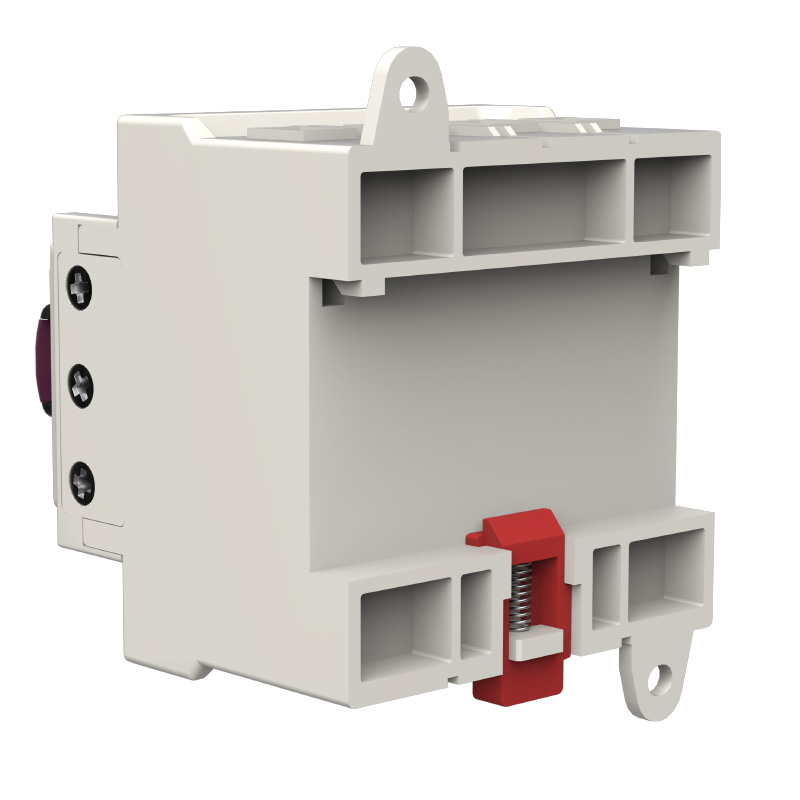

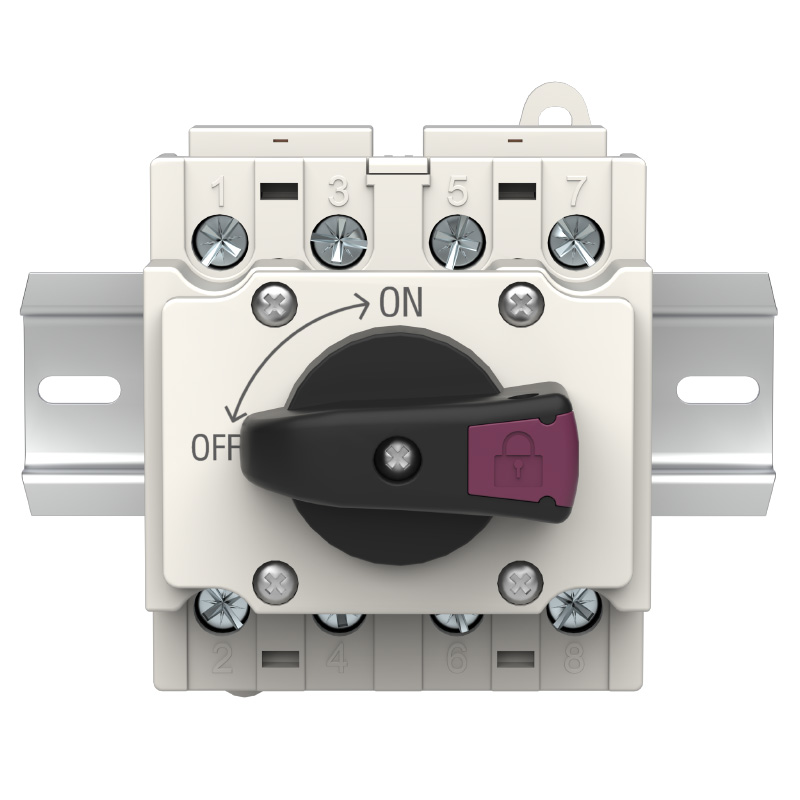

DIN Rail

Install the 35mm DIN rail horizontally in a stable environment.

Installation

①.Hang the disconnect switch slot on the DIN rail
②.Push the lower end of the disconnect switch into the DIN rail

Disassembly

①.Push the switch upward
②.Turn the upper end of the witch out of the DIN rail

Connect Wire

1 in 1 out

2 in 2 out

Tip:
Non-polarized wiring design, a variety of wiring methods, more connection methods can contact us!

PRODUCT DETAILS

Flame retardant

Highly adaptable

Impact resistance

Fast arc extinguishing,
insulation voltage up to 1500V

Corrosion-
resistant screws

Passes salt spray
test for 48 hours
without corrosion

Thick copper with
silver plated contacts

Better conductivity
and stability

Magnets

Fast arc
extinguishing

PA Housing

Durable,
UL 94V-0
flame retardant

APPLICATION SCENARIO

PRODUCT FAMILY

(Note: hole required)

Modle:

LQNQ-40

String:

1 String

Modle:

LQNQ-40.1PV

String:

1 String

Modle:

LQNQ-40.2PV

String:

2 String

(Note: Wiring Required)

Modle:

LQNQ-40.M12

String:

1 String

(Note: Wiring Required)

Modle:

LQNQ-40.M20

String:

1 or 2 String

(Note: Built- in Switch)

Modle:

LQNQ-40.2-2

String:

2 String

(Note: Built- in Switch)

Modle:

LQNQ-40.X

String:

1 or 2 String

Modle:

LQNQ-40.I

String:

1 or 2 String

(Note: PV Accessories)

Modle:

PV Connectors

Rated Current:

6A~ 60A
